To Charge the Battery
The part number for the AC adapter is PWR-SPLY-30W. This is a 30-watt power-supply at 15-volts, 2-amps.
To charge the battery, connect the AC adapter to the 15V jack on the left side of the tester.

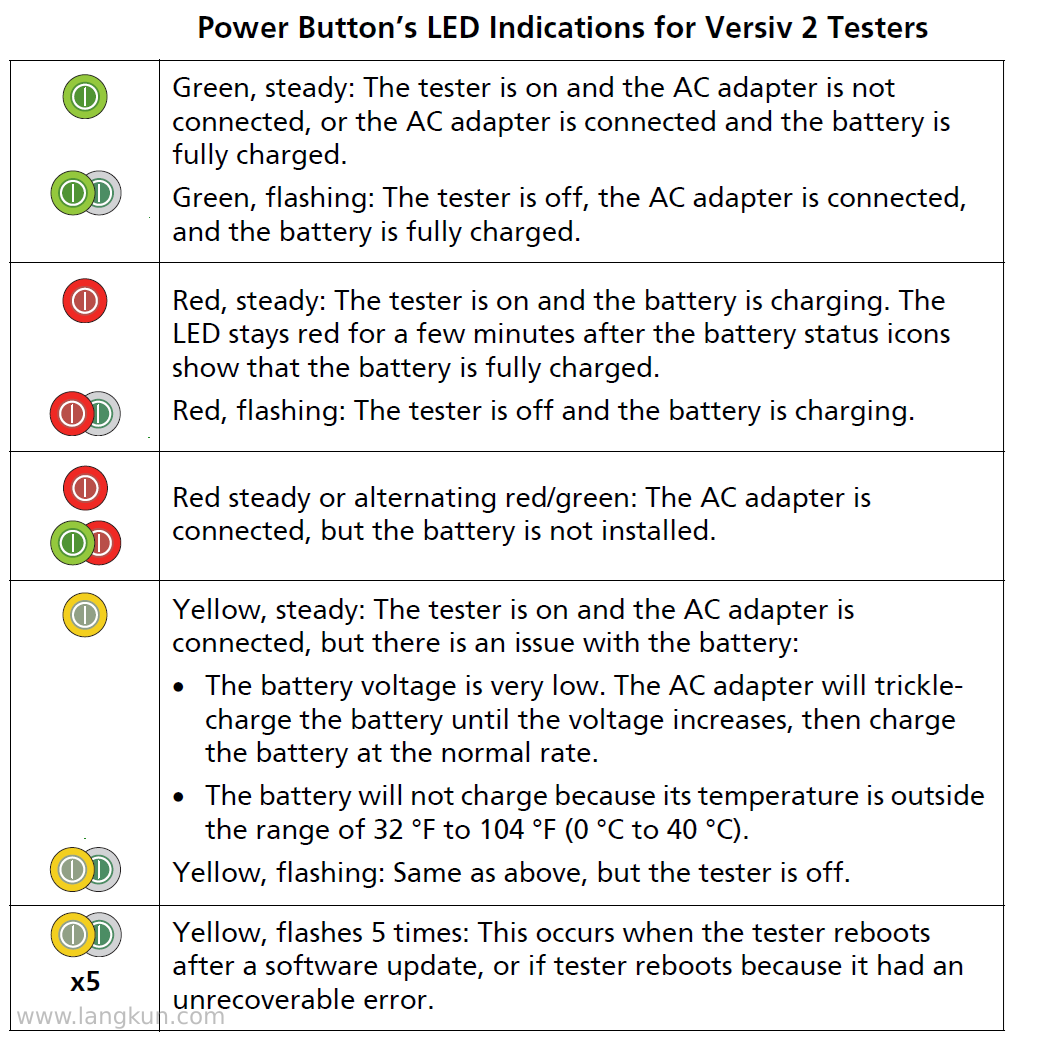

Versiv2: The LED in the power button shows the status of the battery charging process. See Table Below.
Versiv: The LED near the AC adapter connector is red when the battery charges, and green when the battery is fully charged. The LED is yellow if the battery will not charge.
A fully-charged battery operates for approximately 8 hours of typical use. The battery takes approximately 4 hours to fully charge when the tester is turned off.
Notes:
You do not need to fully discharge the battery before you recharge it.
The battery will not charge if its temperature is outside the range of 32 °F to 104 °F (0 °C to 40 °C).
The LED is yellow if the battery will not charge.
